Description

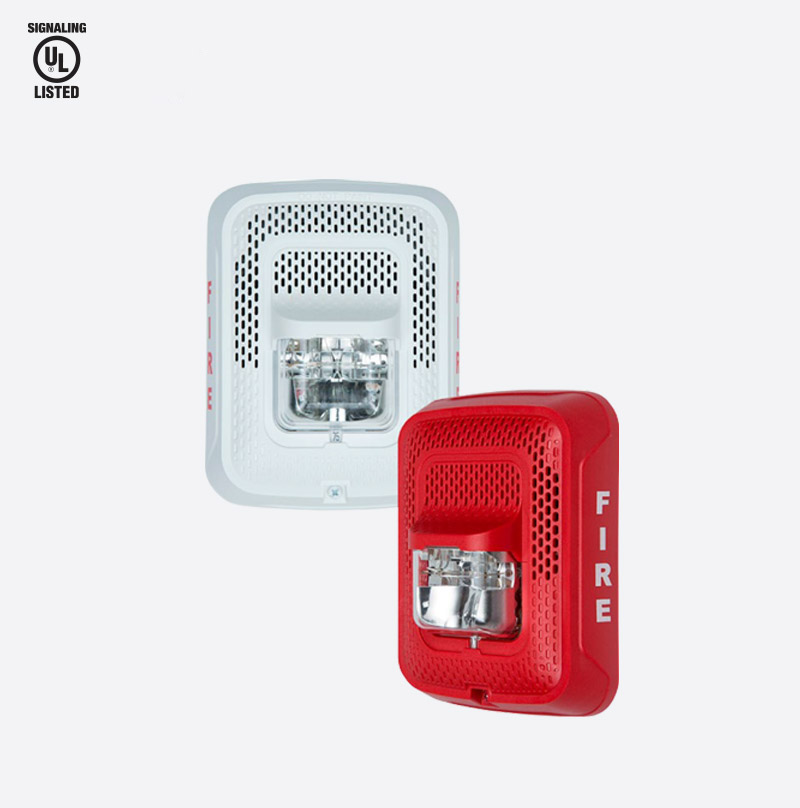

The indoor selectable-output speaker strobes and dual-voltage speakers offer a modern, aesthetic plug-in design that deduce costly ground faults. The universal mounting plate can be used in wall installation applications and its flexible design enables the installer to easily perform the following, pre-wire mounting plates, dress the wires, and confirm wiring continuity before plugging in the speakers. In addition, this product provides a protective plastic cover prevents nicked wires by covering exposed speaker components.
These devices also enable faster installations by providing instant feedback to ensure that wiring is properly connected, rotary switches to select voltage and power settings, and 7 field-selectable candela settings for wall speaker strobes.
The low total harmonic distortion of the speaker offers high fidelity sound output while still offering high volume sound output for use in high ambient noise applications.
L-SERIES MAKES INSTALLATION EASY
1. Attach a universal mounting plate to a 4 × 4 × 2 1⁄8 inch back box Flush-mount applications do not require an extension ring.
2. Connect the notification appliance circuit or speaker wiring to the terminals on the mounting plate.
3. Attach the speaker or speaker strobe to the mounting plate by inserting the product tabs into the mounting plate grooves.
4. Hinge the device into position to lock the product pins into the mounting plate terminals.
5. A catch will temporarily hold the device in place until you secure the device with a captured mounting screw.
