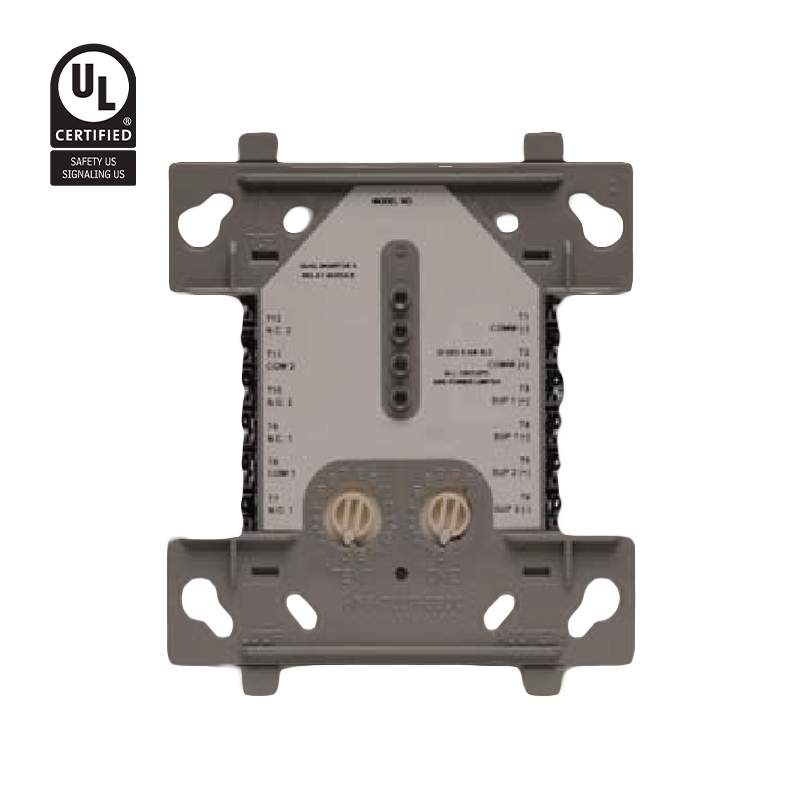

TR-AMM-2RIF
The TRIGA GEN2 Series multi-function module (TR-AMM-2RIF) combines two relay outputs and two monitor inputs into one device. The module is capable of Class B supervised wiring that is used for the monitored devices. It also contains Form C relay contacts which allow the panel to switch the contacts on command. There is a dedicated LED on the module for each input and output. The fire alarm control panel can use these bi-color LEDS to indicate normal, alarm and trouble conditions.
This module is ideally suited for areas where inputs and outputs are needed in the same location. It can be used to
function with any of the following devices:
- smoke/fire dampers
- security doors
- HVAC fan
- dedicated smoke control
- non-dedicated smoke fan
When you combine two relay outputs and two monitor inputs into one device, you can save the cost of installing four devices. This feature can be beneficial when you need to install these devices in high-rise buildings or large shopping complexes. The two input/two output module is the same size module as the standard single modules. It can mount directly to a 4-inch (10.16 cm) square electrical box, the surface mounted SMB500, or it can be installed into the DNR(W) duct housing.
