Description
Intelligent Non-Relay Duct Detector

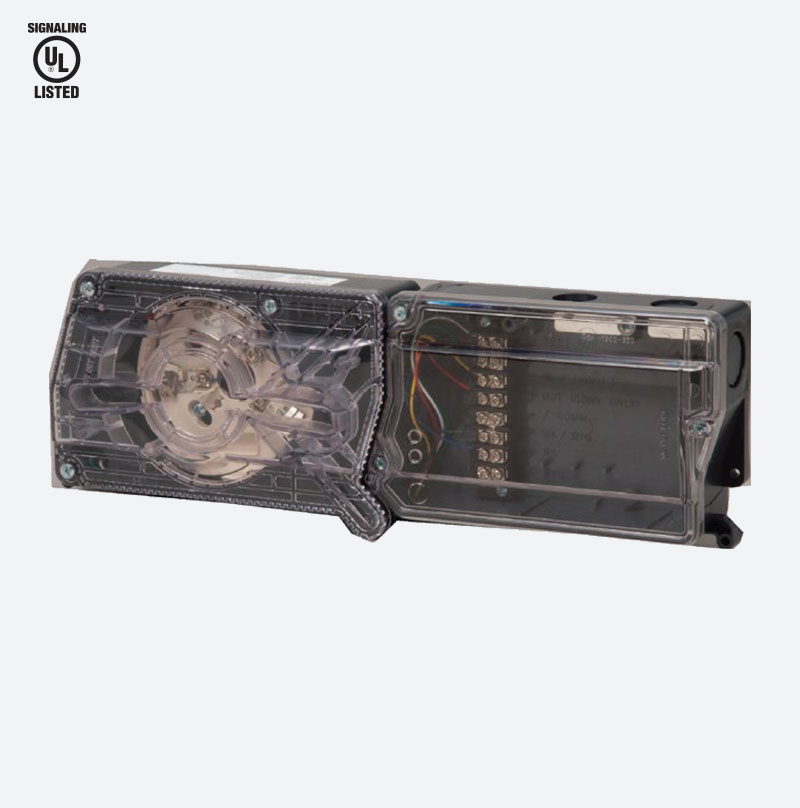

The TR-DNR Intelligent non-relay photoelectric duct smoke detector housing and TR-DNRW watertight non-relay photoelectric duct smoke detector housing (head not included) are for use with Triga Series fire alarm control panels (FACPs).
The TR-DNR and TR-DNRW feature a pivoting housing that is flexible enough to fit configurations from square to rectangular. They feature low-flow technology that enables duct smoke detection throughout a broad range of airflow environments. Many difficult to solve HVAC applications occur in low airflow duct applications where reliable smoke detection is critical. These duct detectors can detect smoke at air speed velocities of 100 feet per minute or greater, while continuing the same reliable performance to 4000 feet per minute.
By sampling air currents passing through a duct and giving dependable performance for shutdown of fans, blowers, and air conditioning systems, the TR-DNR and TR-DNRW prevent the spread of toxic smoke and fire gases through the protected area.
The intelligent duct detectors communicate and are continuously monitored through the FACP signaling line circuit (SLC) loop. Detector sensitivity changes caused by dirt, temperature, or humidity are reported to the FACP, allowing compensation algorithms to maintain the detector’s set sensitivity. An advanced indication at the panel identifies the detector address, allowing for selected mainte-nance to be performed as needed.
INSTALLATION
The TR-DNR and TR-DNRW are designed for use in air handling systems that have air velocities or 100 to 4000 feet per minute (0.5-20.3 m/s).
