TR-ISO

The TR-RELAY is an addressable relay module for use with the Triga Series fire alarm control panels (FACPs).

The TR-RELAY allows a Triga FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit.

Category:

Description

Line Isolator Module

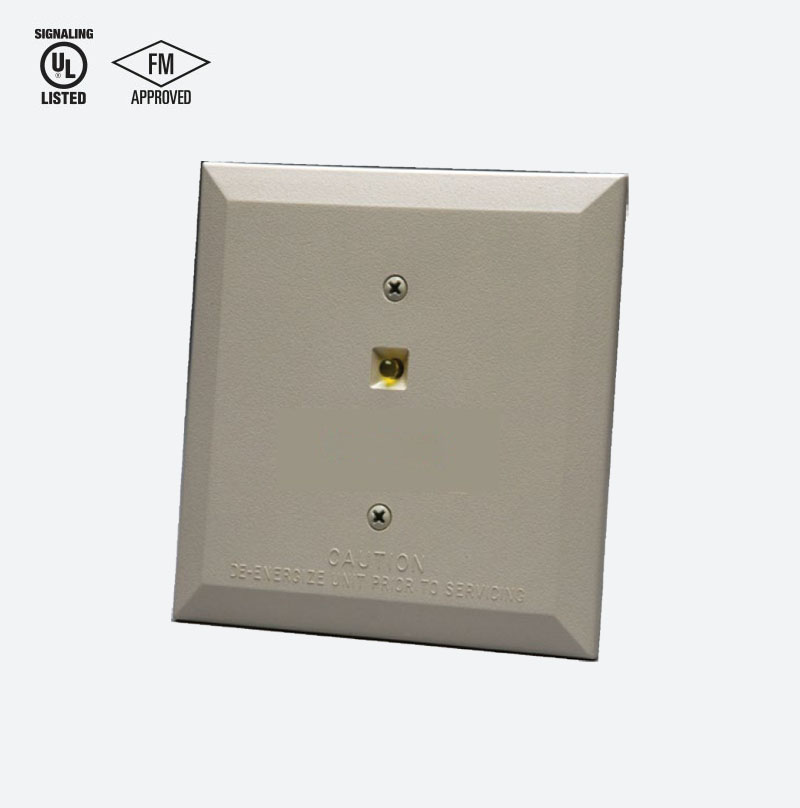

The TR-ISO is a SLC loop line isolator module for use with the Triga Series fire alarm control panels (FACPs). The TR-ISO acts as an automatic switch that opens when the line voltage on the signaling line circuit (SLC) loop drops below four volts. Isolator modules should be spaced between groups of sensors or modules in a loop to protect the rest of the loop. If a short occurs between any two isolators, then both isolators immediately switch to an open circuit state and isolate the devices between them. The remaining units on the SLC loop continue to fully operate. No more than 25 devices are recommended for each group.



INSTALLATION
The TR-ISO mounts directly into a 4” square electrical box. The box must have a minimum depth of 2-1/8”.



COMPATIBILITY
The TR-ISO is compatible with the following Triga Series FACPs:
• TR-2100R / ITR-2100B
• TR-2100ECSR / TR-2100ECSB
• TR-R2100R / TR-R2100B

Features & Benefits

• Isolates short circuits on an SLC loop
• Protects the modules on the SLC loop so other devices continue to operate
• Panel controlled status LED that flashes green in normal state and is solid red in alarm
• Standard 4 inch electrical box mounting
• SEMS screws for easy wiring
• UL Listed

• FM approved

Technical Specifications

PHYSICAL
Dimensions: 4.5″ H x 4″ W x .25″ D ( 11.4 x 10.2 x .6cm)
Shipping Weight: 6.3oz (196g)



ELECTRICAL RATINGS
Operating Voltage: 15 – 32 VDC
Standby Current: 450 μA max
(not isolating; relay closed)
Isolation Current: 5mA max
Fault Detection Delay: 250ms min.
Fault Detection Threshold: 4V
Line Restoration Threshold: 7V



ENVIRONMENTAL
Operating Temperature: 32ºF-120ºF (0ºC – 49ºC)
Humidity: 10 to 93% non-condensing)



ORDERING INFORMATION
TR-ISO: Line Isolator Module



ACCESSORIES
TR-SMB500: 4” Square Surface Mount Electrical Box
