Description
Addressable Monitor Module

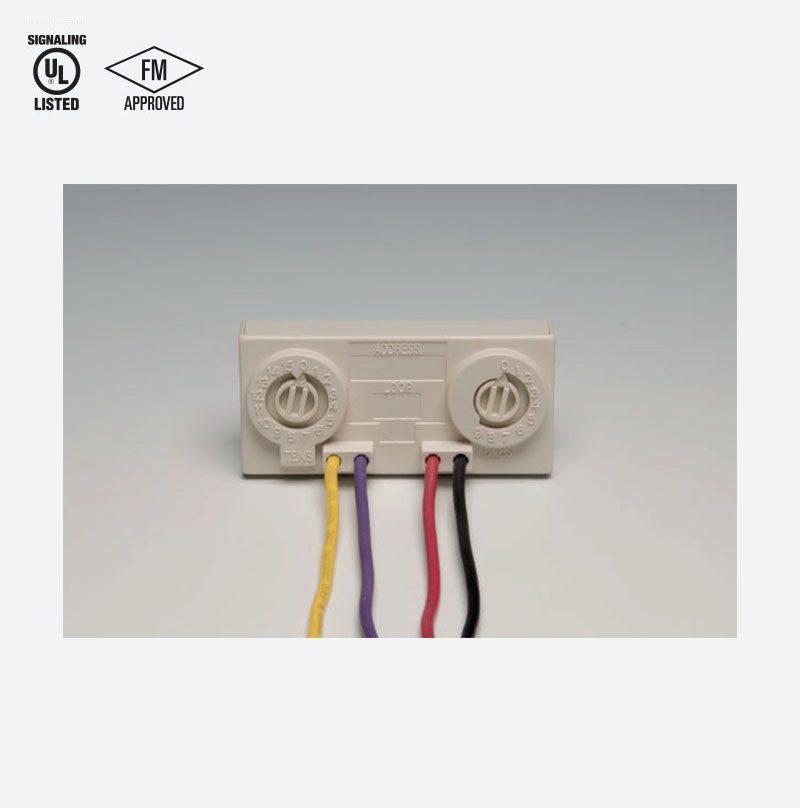

The TR-MINIMON is a compact and light weight addressable monitor module for use with Triga Series fire alarm control panels (FACPs). The TR-MINIMON acts as an interface to contact devices, such as waterflow switches and pull stations.
The TR-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
INSTALLATION
The TR-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
COMPATIBILITY
The TR-Minimon compatible with the following Triga SeriesFACPs:
• TR-2100R / ITR-2100B
• TR-2100ECSR / TR-2100ECSB
• TR-R2100R / TR-R2100B
