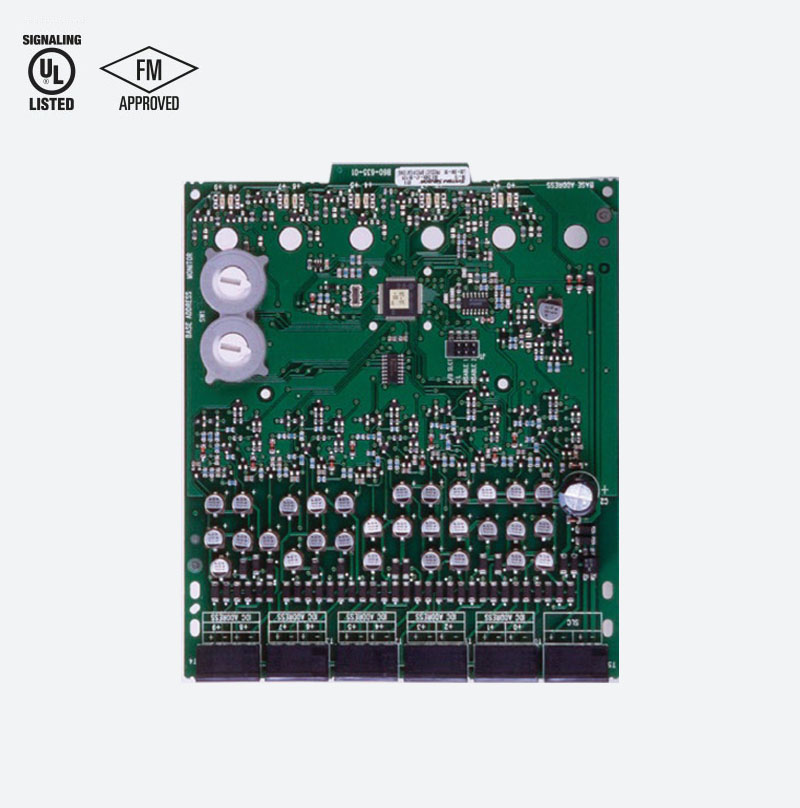

TR-MONITOR-10

The TR-MONITOR-10 is a 10 point addressable monitor module for use with the Triga Series fire alarm control panels (FACPs). The TR-MONITOR-10 acts as an interface to contact devices, such as waterflow switches and pull stations. The multiple input design allows for easy and efficient installation.



The TR-MONITOR-10 supports ten Class B supervised contact inputs or five Class A supervised contact inputs. Conventional 4- wire smoke detectors can be monitored for alarm and trouble conditions.



Category:

Description

Intelligent Ten Input Monitor Module



The TR-MONITOR-10 is a 10 point addressable monitor module for use with the Triga Series fire alarm control panels (FACPs). The TR-MONITOR-10 acts as an interface to contact devices, such as waterflow switches and pull stations. The multiple input design allows for easy and efficient installation.



The TR-MONITOR-10 supports ten Class B supervised contact inputs or five Class A supervised contact inputs. Conventional 4- wire smoke detectors can be monitored for alarm and trouble conditions.



INSTALLATION
You can install up to two TR-MONITOR-10 modules in an accessory cabinet (TR-IDP-ACB). The accessory cabinet has a built-in mounting plate that positions the module boards so that all of the status indicators are visible.



COMPATIBILITY
The TR-MONITOR-10 is compatible with the following Triga Series FACPs:
• TR-2100R / ITR-2100B
• TR-2100ECSR / TR-2100ECSB
• TR-R2100R / TR-R2100B

Features & Benefits

• 10 contact monitor
• Support for Class A and Class B wiring
• Fully supervised
• LED indicator for each input
• Disable unused addresses
• Mount up to two modules in one accessory cabinet (P/N TR-ACB)
• Rotary address switches for fast installation
• Removable 12 to 18 AWG plug in terminal blocks for easy wiring and troubleshooting
• Mounting hardware included
• UL Listed

• FM approved

Technical Specifications

PHYSICAL
Dimensions: 6.8″ H x 5.8″W x 1.25″ D
Shipping Weight: 6.3oz (196g)



ELECTRICAL RATINGS
Wire Gauge: 12-18 AWG
Operating Voltage: 15 to 32VDC
Standby Current: 3.5mA
Alarm Current: 55mA max. (Assumes all ten LEDs solid on)
Initiating Device Circuit Voltage: 10.2VDC max
Initiating Device Circuit Current: 240μA max
SLC Wiring Resistance: 40W max.W



ENVIRONMENTAL
Operating Temperature: 32º-120ºF (0ºC – 49ºC)
Humidity: 10 to 93% non-condensing)



ORDERING INFORMATION
TR-Monitor-10: 10 Input monitoring module



ACCESSORIES
TR-IDP-ACB: Module Cabinet. 15.25″ H x 12.5″ W x 3″D
