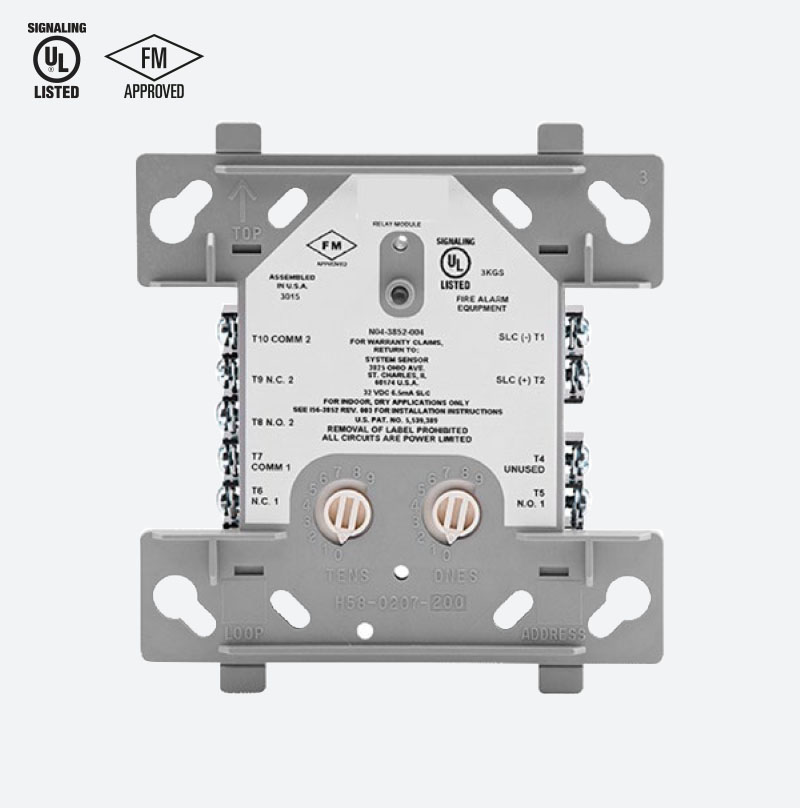

TR-RELAY

The TR-RELAY is an addressable relay module for use with the Triga Series ﬁre alarm control panels (FACPs).

The TR-RELAY allows a Triga FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notiﬁcation appliance circuit.

Category:Addressable Modules

Description

Addressable Relay Module

The TR-RELAY is an addressable relay module for use with the Triga Series ﬁre alarm control panels (FACPs).

The TR-RELAY contacts can be used for virtually any normally open or normally closed application. Each TR-RELAY is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the TR-RELAY, the relay is triggered by the FACP.

INSTALLATION
The TR-RELAY mounts directly into a 4” square electrical box. The box must have a minimum depth of 2-1/8”. A surface mount electrical box (TR-SMB500) is available from Triga.

COMPATIBILITY
The TR-RELAY is compatible with the following Triga Series FACPs:
• TR-2100R / ITR-2100B
• TR-2100ECSR / TR-2100ECSB
• TR-R2100R / TR-R2100B

Features & Benefits

• Two sets of Form C contacts
• Contacts are rated for a variety of amps (see Speciﬁcations)
• Panel controlled status LED that ﬂashes green in normal state and is solid red in alarm
• Relay programming is completely ﬂexible –can be mapped to zone conditions
• Polling LED visible through the cover plate
• Rotary address switches for fast installation
• SEMS screws for easy wiring
• UL Listed

• FM approved

Technical Specifications

SPECIFICATIONS
Physical: 4.275″ H x 4.675″ W x 1.4″ D
Shipping Weight: 6.3oz (196g)

ELECTRICAL RATINGS
Operating Voltage: 15 to 32VDC
Standby Current: 300μA max @ 24VDC (one communication every 5 sec. with LED enabled) LED Current: 5.5 mA (with LED latched on)
Relay Contact Ratings:
2.0A @ 25VAC (PF=.35), non-coded
3.0A @ 30VDC resistive, non-coded
2.0A @ 30VDC resistive, coded
0.46A @ 30VDC (L/R=20ms), non-coded
0.7A @ 70.7VAC (PF=.35), non-coded
0.9A @ 125VDC resistive, non-coded
0.5A @ 125VAC (PF=.75), non-coded
0.3A @ 125VAC (PF=.35), non-coded

ORDERING INFORMATION
TR-RELAY: Relay Module

ACCESSORIES
TR-SMB500: 4” Square Surface Mount Electrical Box
TR-CB500: Module Barrier. Used to separate power limited and non-power limited wiring in a junction box.
