TR-RPS1

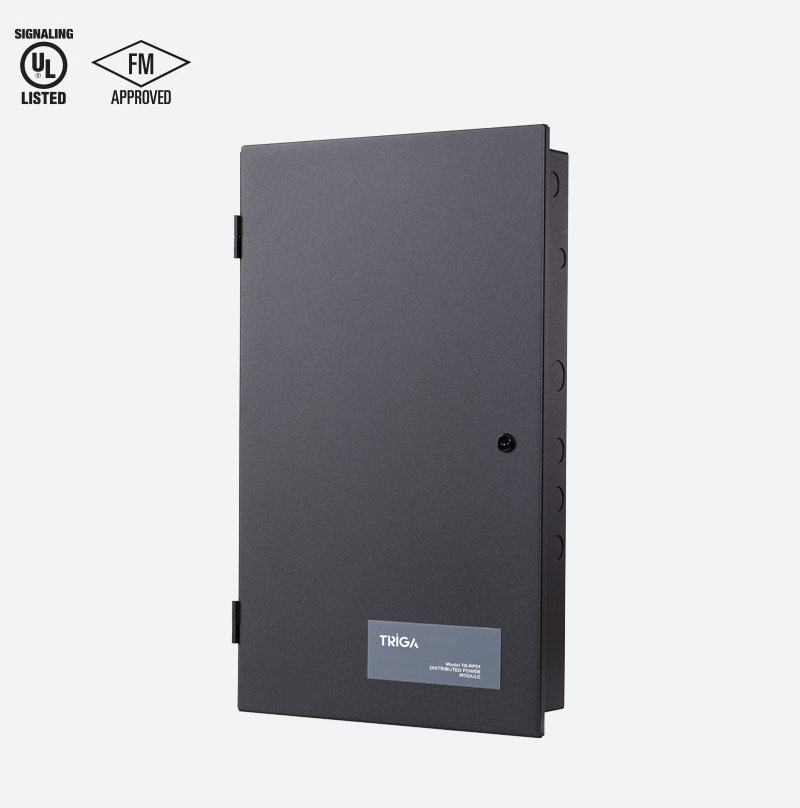

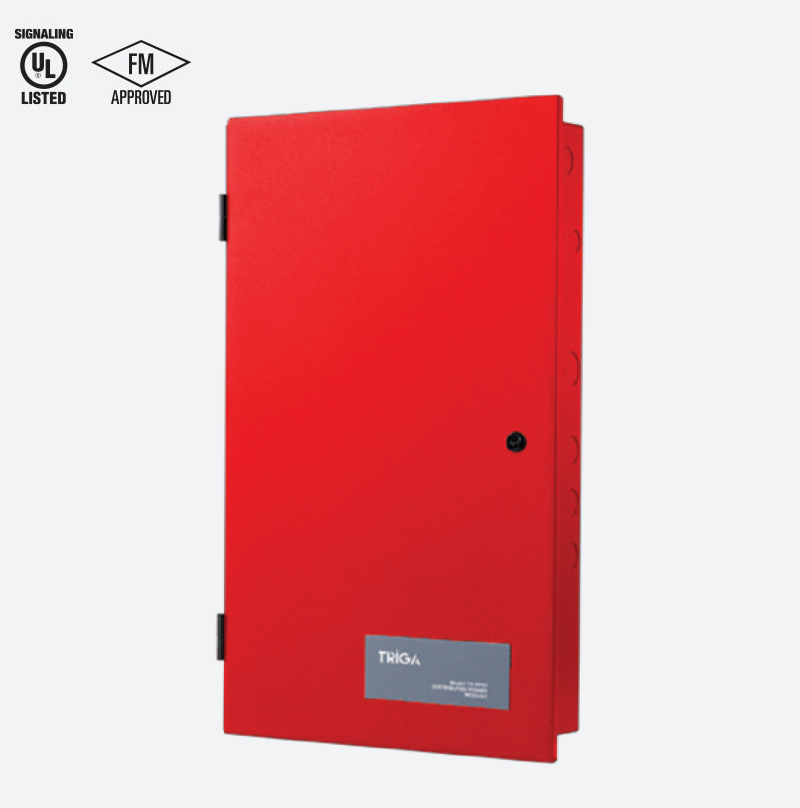

TR-RPS1 is an intelligent distributed power module that adds 6.0 amps of power, six Flexput™ I/O circuits, and two Form C relay circuits to a compatible Triga Series addressable system.



TR-RPS1 connects to the FACP via the RS-485 system bus allowing up to an additional 6,000 feet of wiring. Each TR-RPS1 is optically isolated providing ground loop isolation and transient protection. TR-RPS1 supports its own backup battery and monitors the AC power.

Category:

Description

6 Amp Intelligent Distributed Power Module



TR-RPS1 is an intelligent distributed power module that adds 6.0 amps of power, six Flexput™ I/O circuits, and two Form C relay circuits to a compatible Triga Series addressable system.



TR-RPS1 connects to the FACP via the RS-485 system bus allowing up to an additional 6,000 feet of wiring. Each TR-RPS1 is optically isolated providing ground loop isolation and transient protection. TR-RPS1 supports its own backup battery and monitors the AC power.



The Flexput circuits can be programmed as notification appliance circuits, continuous, re-settable, or door holder power, or as conventional initiation circuits for 2 or 4-wire smoke detectors and contact devices (e.g. pull stations) Installation.



COMPATIBILITY
The TR-RPS1 are compatible with the following Triga Series FACP’s:
• TR-2100ECSR / TR-2100ECSB (63 max per panel)
• TR-2100R / TR-2100B / TR-R2100R / TR-R2100B (63 max per panel)

Features & Benefits

• 6.0 amps output power
• Supports Class A (Style 6) and Class B (Style 4) configuration of the SBUS
• Two Form C programmable relays rated at 2.5A @ 24 VDC
• Ground loop isolation and transient protection
• Provides SBUS optical isolation and re-conditions the RS- 485 signal
• Built-in synchronization for appliances from System Sensor®, AMSECO, Gentex®, and Wheelock®
• Up to 6,000 foot wiring distance from the TR-RPS1
• Battery charging capacity is 35AH
• Large cabinet size can house two 18AH backup batteries or RBB accessory cabinet can house battery sizes larger that 18AH
• Room to mount two TR-6815 SLC expander modules
• Six onboard Flexput circuits programmable for:

  1. Notification appliance circuits (Class B/Style Y & Class A/Style Z)
  2. Conventional initiation circuits (Class B/Style B & Class A/Style D) both 2- and 4-wire
  3. Auxiliary power (for door holders, continuous power, or resettable power)

Technical Specifications

PHYSICAL
Mounting Dimensions: 14.5” W x 24.75” H x 3.9” D (36.8 cm W x 62.9 cm H x 9.8 cm D)
Overall Dimensions: 16.1” W x 26.4” H x 4.1” D
(40.6 cm W x 67 cm H x 11.8 cm D)
Color: Black



ENVIRONMENTAL
Operating Temperature: 32ºF-120ºF (0ºC-49ºC) Humidity: 10%-93% non-condensing



ELECTRICAL
Primary AC: 120 V, 50 or 60Hz, 2.5A, or 240V, 50 or 60Hz, 1.4A
Total Accessory Load: 6A @ 24VDC



CURRENT
Standby: 40mA
Alarm: 160mA
SBUS Standby & Alarm: 10mA
Flexput Circuits:
Notification: 3amps per circuit (6A system total) Initiation: 100mA power limited @ 24VDC



ORDERING INFORMATION
TR-RPS1: High voltage (240V) Intelligent Distributed Power Module



ACCESSORIES
RBB: Remote Battery Box Accessory Cabinet. 16” W x 10” H x 6” D (406 mm W x 254 mm H x 152 mm D) AB-55: Remote Battery Box Accessory Cabinet. 20”W x 12” H x 7.5” D
TR-6815: SLC Expander Module
TR-SCK: Seismic Compliance Kit



AGENCY LISTING AND APPROVALS
NFPA 13, NFPA 70, NFPA 72, UL 2572, UL 1711 & UL 864: Local Protective Signalling Systems.
UL Listed, FM approved
