Description
Six Zone Interface Module

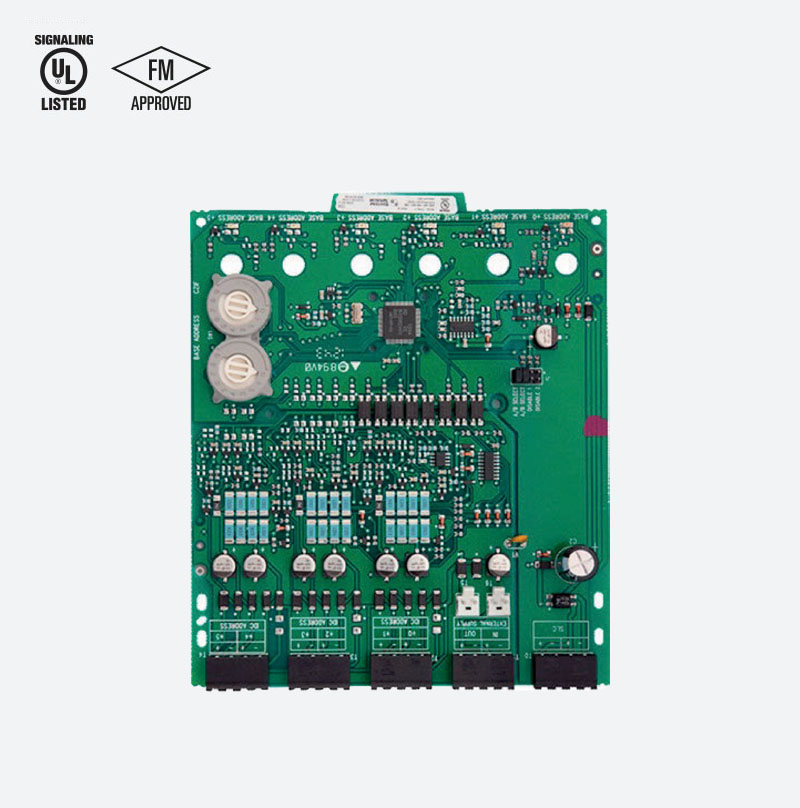

The TR-ZONE-6 is an addressable zone interface module for use with the Triga Series fire alarm control panels (FACPs). The IDPZONE- 6 provides six zone inputs that allow a Triga FACP to interface and monitor two-wire conventional smoke detectors. This means you can retrofit an existing building and use existing conventional devices.
The inputs on the TR-ZONE-6 share a common FACP signaling line circuit (SLC) input, and the initiating device circuits share a common external power supply. Otherwise, each input on the module operates independently from the others. If needed, you can disable a maximum of two unused inputs on the TR-ZONE-6 board.
It transmits the status of a zone of two-wire detectors to the FACP. Status conditions are reported as normal, open or alarm. The TR-ZONE-6 supervises the zone of detectors and the connection of the external power supply. All two-wire detectors being monitored must be UL compatible with the TR-ZONE-6.
INSTALLATION
The TR-Zone-6 mounts in the TR-IDP-ACB cabinet. The TR-IDP-ACB has a built-in chassis that will accommodate one or two TR-Zone-6 modules
