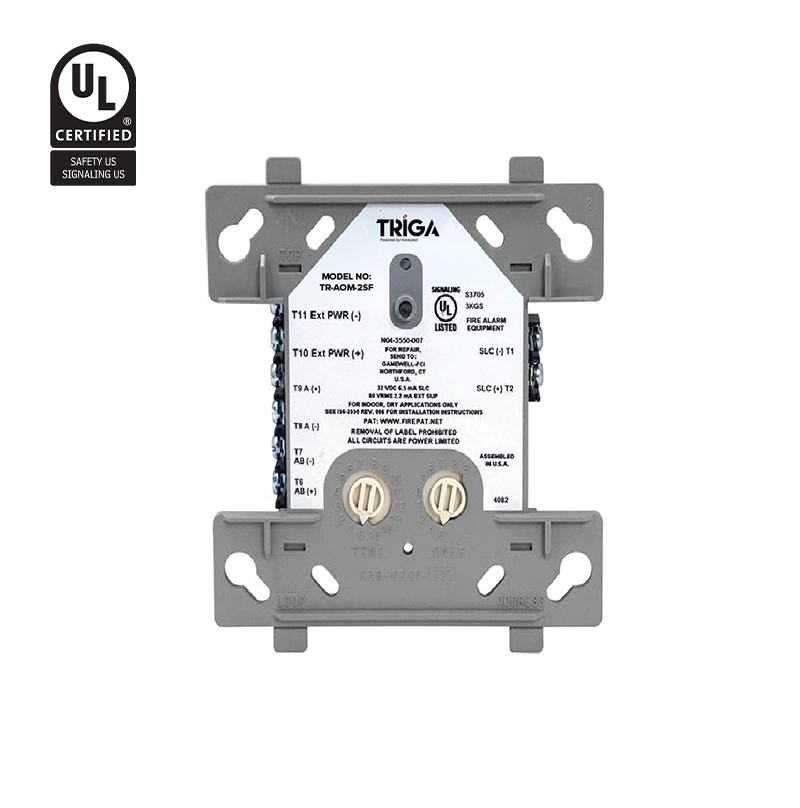

TR-AOM-2SF
The TRIGA TR-AOM-2SF is an intelligent addressable output control module designed to switch external power sources—such as 24 VDC auxiliary supplies or audio amplifiers rated up to 80 VRMS—to field notification appliances. This module provides a fully supervised Notification Appliance Circuit (NAC) that can be field-wired as either a Class A (Style Z) or Class B (Style Y) loop.
- Continuous Circuit Supervision: Actively monitors downstream field wiring and attached notification loads, reporting real-time status indicators (NORMAL, OPEN, or SHORT CIRCUIT) back to the main control panel.
- High-Speed Response Protocol: Powered by the advanced GEN2 communication architecture. The control panel utilizes an optimized grouped scanning framework that instantly focuses processing power on the module during a status change, delivering performance up to five times faster than legacy systems.
- System Capacity & Installation: Fully compatible with any TRIGA analog addressable fire alarm control panel, which supports up to 159 control modules per signaling line circuit (SLC). Features an onboard panel-controlled status LED and mounts directly into a standard 4-inch square electrical junction box (2-1/8 inches deep).
