TR-MMO-6RF

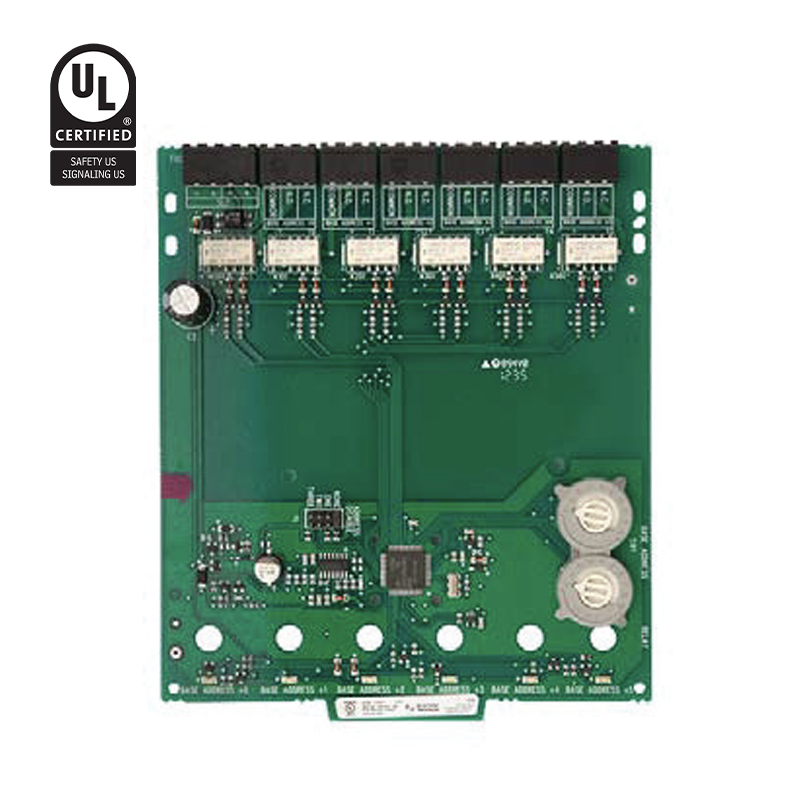

The TRIGA TR-MMO-6RF is a high-density multi-module interface that provides six independent Form C control relay outputs on a single compact circuit board. This consolidated architecture maximizes installation efficiency, reduces field wiring bottlenecks, and minimizes internal cabinet space inside your main control enclosures.
- Independent Relay Addressing: Connects directly as an addressable node on the main signaling line circuit (SLC). While the base address of the first relay is set manually via onboard rotary code switches, the remaining five relay circuits automatically populate subsequent sequential addresses—allowing each output to be independently mapped in the control-by-event software logic.
- High-Speed GEN2 Protocol: Leverages the advanced GEN2 communication architecture. The system groups addressable points during routine scans and instantly isolates processing power onto the module the moment a command or status change occurs, delivering execution speeds up to five times faster than legacy configurations.
- Ancillary Control Flexibility: The six onboard Form C dry-contact circuits provide independent, non-supervised switching power to coordinate vital building operations such as air-handling unit shutdowns, elevator recalls, damper controls, and security door releases.
