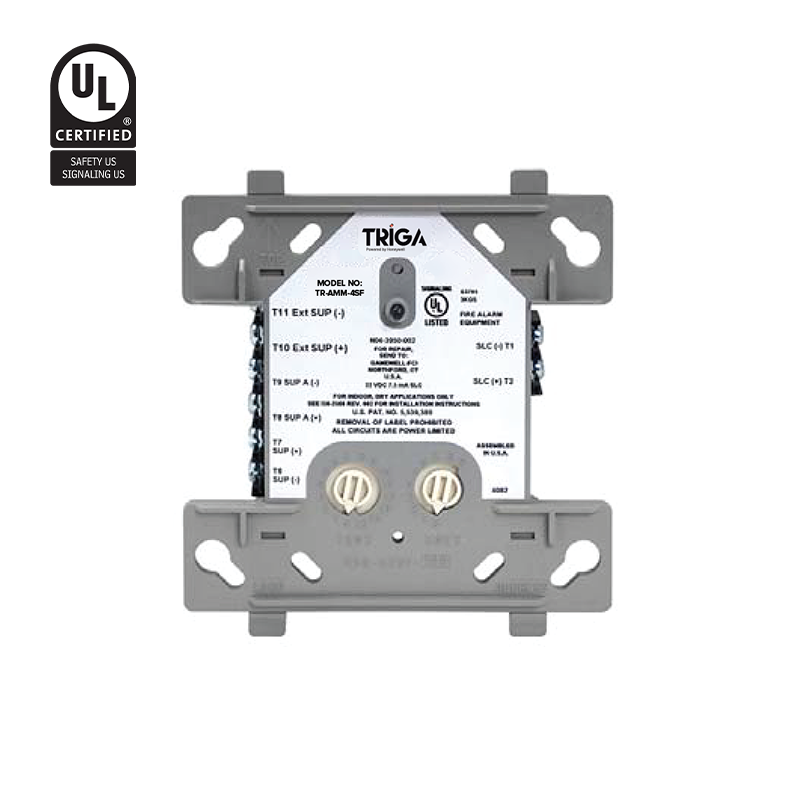

TR-AMM-4SF
The TRIGA GEN2 Series, addressable monitor module TR-AMM-4SF features a single Style D, Class A initiating device circuit. It may also be configured as a Style B, Class B initiating circuit with an end-of-line resistor. This module provides an address for a group of conventional 2-wire smoke detectors.
Any alarm initiating devices with normally open (N.O.) dry contacts such as the following devices may also be installed in this circuit.
- heat detectors
- manual stations
- linear heat detection devices
- water flow switches
- 4-wire smoke detectors
- tamper switches
The GEN2 Series use a communication protocol that substantially increases the speed of communication between the sensors and certain TRIGA analog addressable fire alarm control panels. These devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net effect is response speed up to five times greater than earlier designs.
The TR-AMM-4SF module is designed to be installed with the signaling line circuit in any TRIGA analog addressable fire alarm control panel. The signaling line circuits of TRIGA analog addressable panels are designed to accommodate up to 159 monitor modules per circuit.
