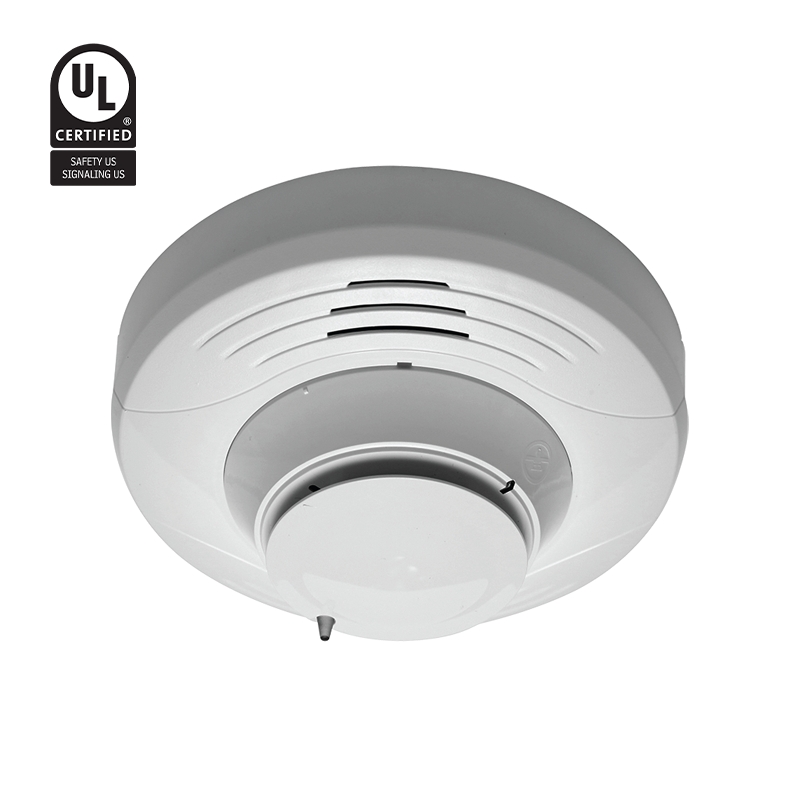

TR-MCS-COF3
The TRIGA TR-MCS-COF3 is an advanced, plug-in addressable device that provides comprehensive dual protection against both fire hazards and toxic carbon monoxide (CO). By integrating four distinct sensing technologies into a single unit, it maximizes detection accuracy while virtually eliminating false or nuisance alarms.
- Four-Element Detection Matrix: Combines dedicated smoke, carbon monoxide, heat, and infrared sensors to evaluate environmental data points simultaneously.
- Photoelectric Stream: Continuously screens for airborne smoke particles associated with developing fire events.
- Thermal Layer: Monitors ambient heat and rate-of-rise changes with a 135°F (57°C) fixed-temperature threshold.
- Infrared Tracking: Analyzes environmental light and flame patterns as an independent validation metric before verifying an alarm.
- Electrochemical Cell: Houses a specialized chemical sensor that generates an isolated signal dedicated strictly to life-safety CO monitoring.
- Advanced Algorithmic Filtering: Employs intelligent, onboard software processing to compare data from all four inputs. This yields maximum sensitivity to real fire signatures while providing unparalleled immunity to non-threatening household or industrial particulates.
- Simplified System Design: Packs comprehensive multi-criteria safety into a single addressable node, reducing total device counts and field wiring requirements.
