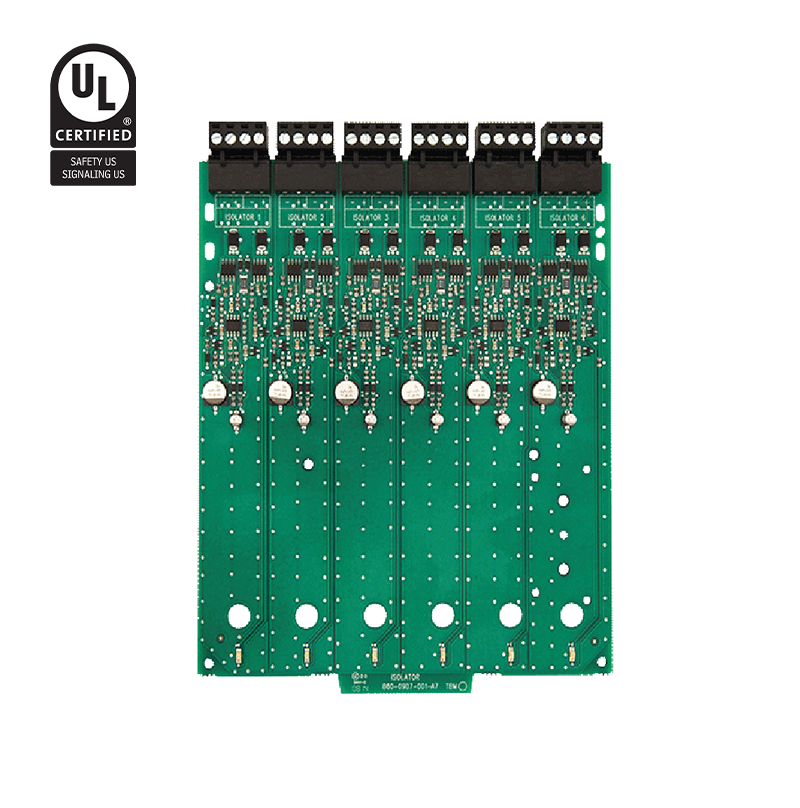

The TRIGA TR-ISO-6 is a high-density, multi-circuit addressable isolator module engineered to preserve the integrity of the signaling line circuit (SLC) during wiring faults. Acting as an automatic electronic switch, each isolated circuit channel monitors loop conditions and instantly opens if the local line voltage drops below a critical 4-volt threshold.

• Segmented Loop Protection: Strategically spaced between groups of sensors or modules within a Class A loop topology to safeguard the rest of the network from localized failures.
• Automatic Fault Isolation: If a short circuit occurs between any two isolators, both adjacent units immediately switch to an open-circuit state. This locks out the shorted section and completely isolates the damaged wiring between them.
• Continuous System Operation: By containing the electrical fault to a single isolated zone, the remaining devices on the loop continue to communicate and operate without interruption, ensuring uninterrupted life safety protection.
• High-Density Form Factor: Houses six independent, electrically isolated circuits within a single compact footprint, significantly reducing the required module count and saving valuable enclosure space.
