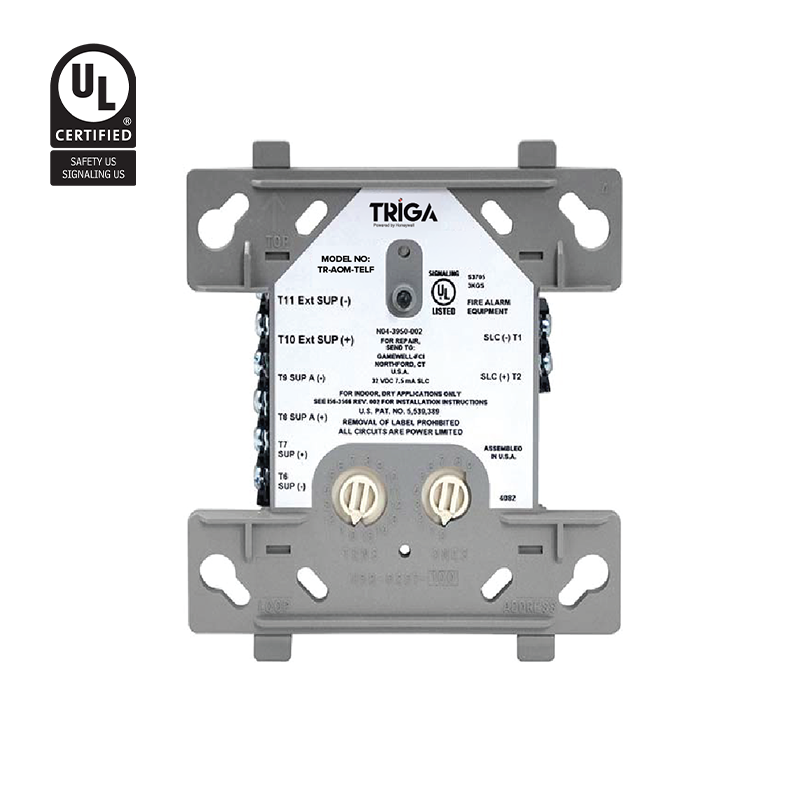

TR-AOM-TELF
The TRIGA GEN2 Series, Telephone Monitor Module (TR-AOM-TELF) controls the communications between the command center and the telephone jacks/warden stations. Wiring to individual telephone jacks and handsets is supervised and may be configured as two-wire (Class B) or fault tolerant (Class A). Status is reported to the panel as the following:
- NORMAL
- TROUBLE
- TELEPHONE
The module contains a panel-controlled LED indicator.
The TR-AOM-TELF is installed in the signaling line circuit of the TRIGA Emergency Voice Evacuation Systems.
The TR-AOM-TELF is designed to fit into a 4″ (10.16 cm) square junction box 2 1/8″ (5.5 cm) deep.
The GEN2 Series use a communication protocol that substantially increases the speed of communication between the SLC devices and certain TRIGA analog addressable fire alarm controls. These devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net result is a superior response speed up to five times greater than earlier designs.
