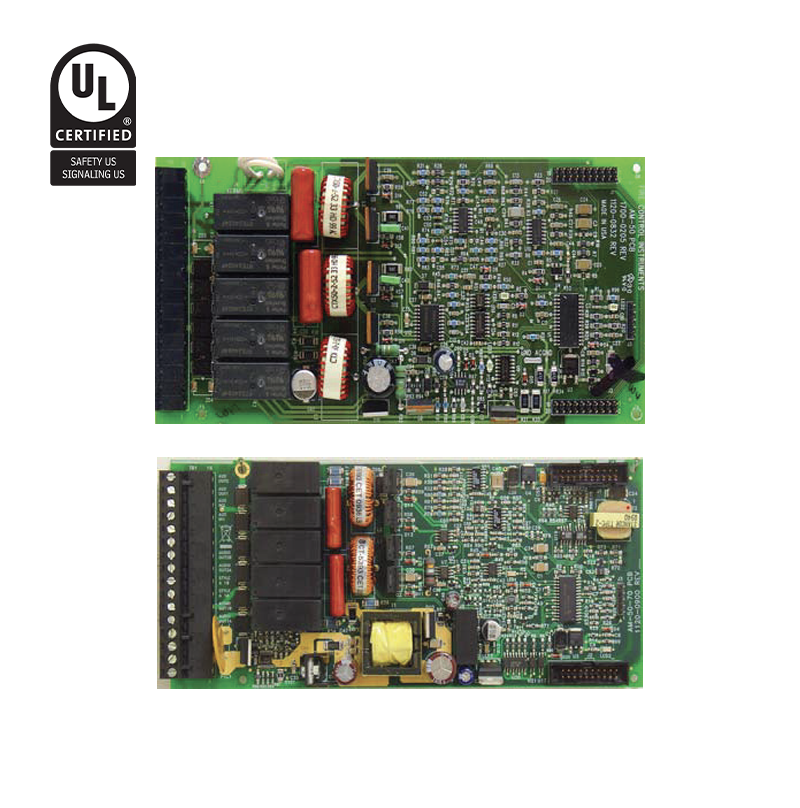

TR-AM-50 Series
The TRIGA, TR-AM-50 Series amplifiers are a 50 watt, digital, switching power amplifier. The following lists the two types of TR-AM-50 Series amplifiers that may be ordered.
- The TR-AM-50-25 amplifier produces 25 VRMS audio output.
- The TR-AM-50-70 amplifier produces 70.7VRMS audio output. The amplifiers are components of the following
GEN2 Series® Systems.
- GEN2 Series Expandable Emergency Evacuation System
- GEN2 Series Combined Fire and Mass Notification System
- GEN2 Series Broadband Voice Evacuation System
Each TR-AM-50 Series amplifier provides two speaker circuits that can be wired Style Y (Class “B”) or Style Z (Class “A”). The terminal connections can accommodate up to 12 AWG, twisted-pair, shielded wire. Both speaker circuits produce a combined total of 50 watts of power. The 50 watts of power can be divided between the two integral Class A/B speaker circuits. The two speaker circuits may be individually activated and supervised by an TR-INI-VGX Transponder Voice Gateway.
The TR-AM-50 Series amplifier can be programmed to broadcast sixteen messages generated from its local TR-INI-VGX Voice Gateway. In addition, the TR-AM-50 Series amplifiers produce superior clarity for intelligible LIVE voice paging
