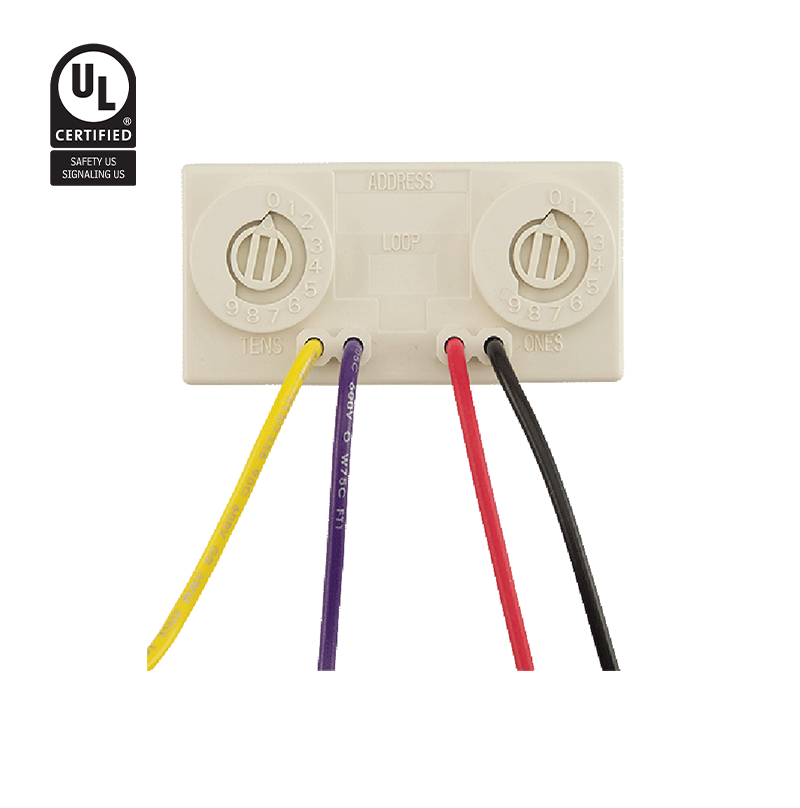

TR-AMM-2F
The TRIGA GEN2 Series, addressable monitor module TR-AMM-2F is a single Style B, Class B initiating device circuit (IDC) with a 47KW end-of-line resistor. This module provides an address for any device or group of devices connected to this circuit on the signaling line circuit (SLC) of the TRIGA addressable series fire alarm control panel. Any initiating device with normally open (N.O.) dry contacts may be made addressable when connected to the TR-AMM-2F module.
The GEN2 Series use a communication protocol that substantially increases the speed of communication between the sensors and certain TRIGA analog addressable fire alarm controls. These devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net e ect is response speed up to five times greater than earlier designs.
The TR-AMM-2F module can be programmed to provide a wide variety of input functions to the TRIGA addressable series fire alarm control panels. It can be identified as a manual station, heat detector, plenum detector, waterflow switch, tamper switch, N.O. contact, smoke detector, projected beam smoke detector, sub loop, remote zone, etc. It can also serve as a remote system silence, system reset, system acknowledge or drill switch. It is even possible to customize its device type to meet specific job requirements.
