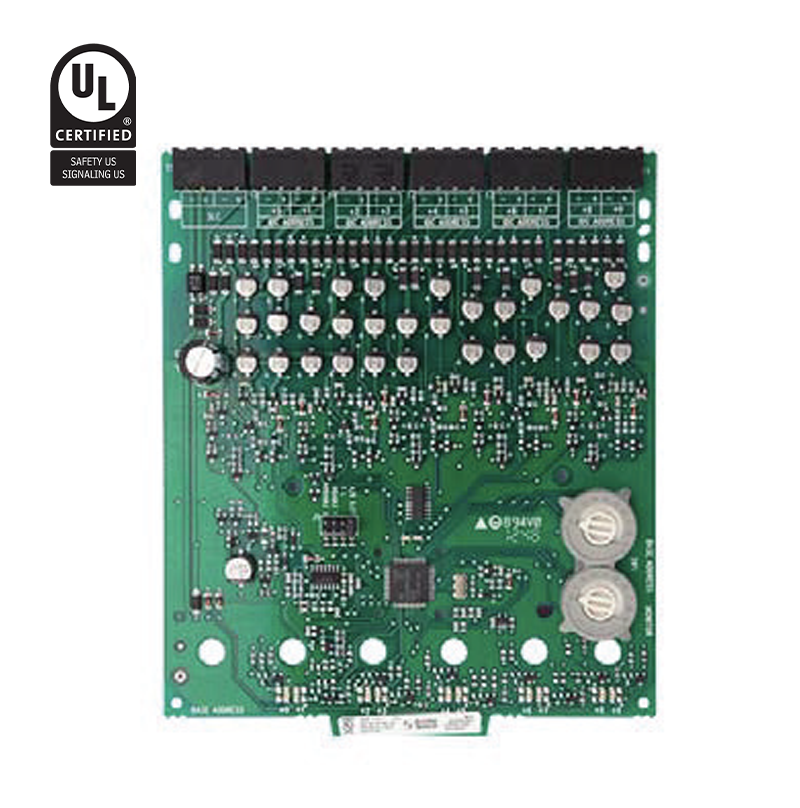

TR-MMI-10F
The TRIGA GEN2 Series, multi-mod ten input monitor module (TR-MMI-10F) provides ten Style B (Class B) or five Style D (Class A) supervised initiating device circuits (IDCs) that are suitable for a wide range of monitoring applications.
The GEN2 Series use a communication protocol that substantially increases the speed of communication between the sensors and certain TRIGA analog addressable fire alarm controls. These devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net effect is response speed up to five times greater than earlier designs.
Each supervised circuit may be connected to any normally open contact device such as manual stations, tamper and supervisory switches, waterflow switches, heat detectors, 4-wire smoke sensors, etc.
The TR-MMI-10F connects to the signaling line circuits (SLC) of the TRIGA analog addressable series fire alarm control panels. Each of the TR-MMI-10F circuits occupies its own address on the system’s SLC allowing each to be fully programmable in its control-by-event sequence of operation.
